Description
| SPECFICATION | OVERVIEW | ||
|---|---|---|---|

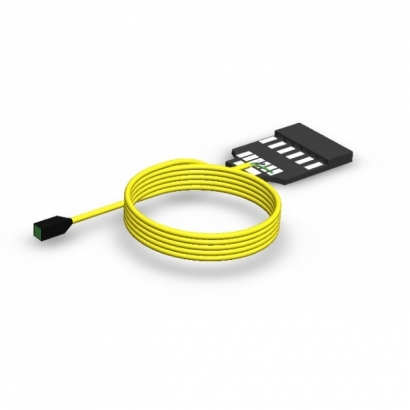

| Effective Pixel | 400 x 400 | The OM-161 model is a low voltage, high performance CMOS image sensor. This cutting edge sensor provides full-frame analog images in RAW RGB format via the control of the serial peripheral interface (SPI). It captures high quality 400 x 400 resolution video at 30 frames per second (fps). |
|
| Frame Rate | 30 fps | ||
| Size (W*H*L) | 1.1 x 1.1 x 4 mm | ||
| Field of View | 120o ± 6o | ||
| Depth of field | 3-50mm | DOWNLOAD | INQUIRY |
| Cable Outer Diameter |
Φ0.39mm | Product Flyer |
 |
| Cable Length | 2.5M (default) / 5M (max) | ||
Related Product
| Product | Product Name | Model | Overview | Inquiry |
|---|---|---|---|---|
 |
Endoscope Camera Control Unit | M12 | |
 |
 |
Disposable Ureteroscope |
Ureteroscope | |
|
 |
Disposable Cystoscope |
Cystoscope | |
|
 |
Disposable Bronchoscope |
Bronchoscope | |
|
 |
Camera Module | OM-166 | |
|
CUSTOMIZATION PROCESS How to choose your camera module?
01
Choose the camera sensor
Choose the camera sensor
(Resolution / Size / FOV etc.)
02
With or without LED
With or without LED
(If needed, choose LED Type)
03
With or without distal tips
With or without distal tips
(If needed, choose the material)
04
