It has good bending resistance and compliance.

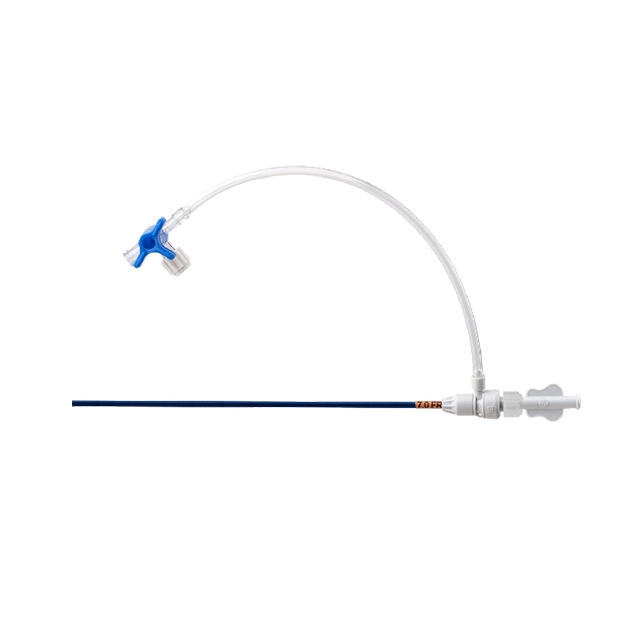

Design of developing ring at the front end of conveying sheath tube, accurate positioning during operation;
Anti-backflow valve design to prevent blood backflow and intake;
Structure:
The outer PEBAX material provides excellent biocompatibility and reduces intraoperative tissue damage.
The middle layer of stainless steel spiral structure provides support, folding resistance, flexibility;
The inner PTFE material reduces the push resistance, and the plugging device is transported more smoothly;
Processing range: 9F-26F

Product advantages:

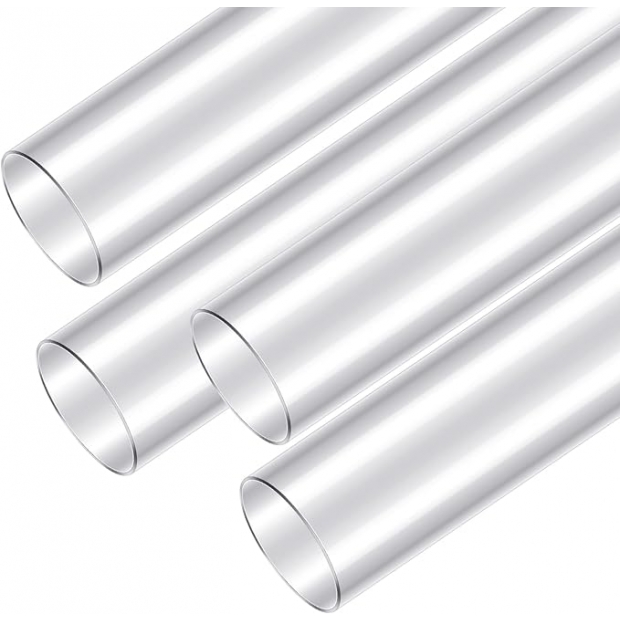

Ultra-thin wall, ultra-high strength
Extremely smooth inner diameter surface
Excellent biocompatibility, USP VI compliant
Parameters:
Processing materials The softest polymer material can be TPU45A
Processing range 0.2-15mm; Concentricity ≥90%
Precision machining capacity WT: 0.02±0.005
Applicable to:
Cardio-cerebrovascular intervention | neurosurgery

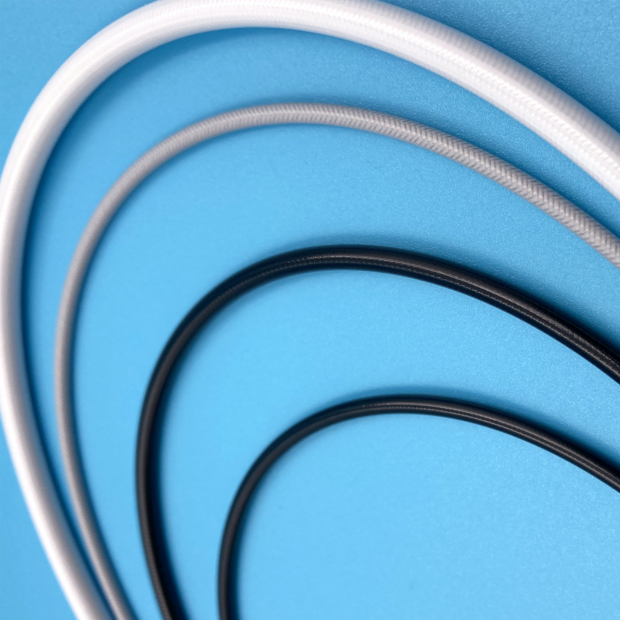

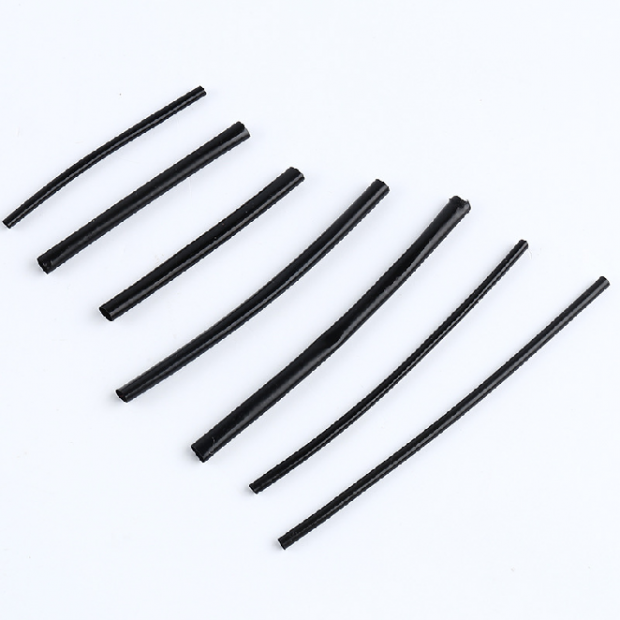

Made of medical grade TPU and silica gel, it has good flexibility and wear resistance.
Main applications:
It is used for endoscope insertion into the outer layer of the anterior segment of the tube
Services can be customized according to customer requirements

This product is formulated with a special recipe and offers high self-lubricating properties, high rigidity, and dimensional stability.

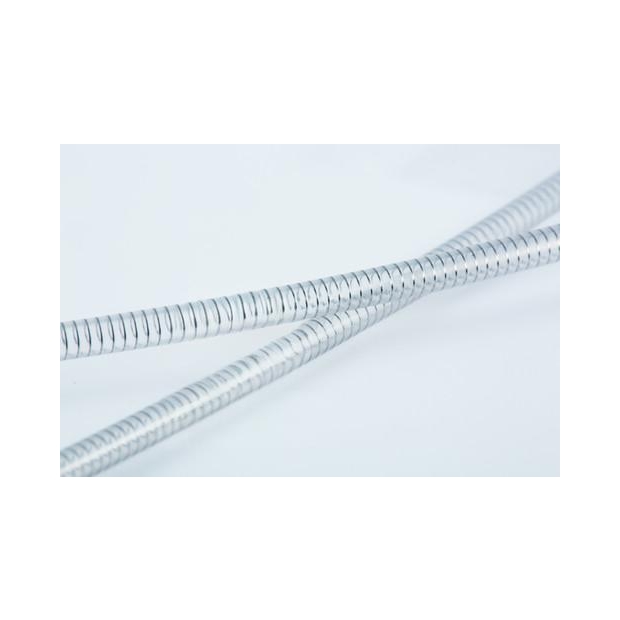

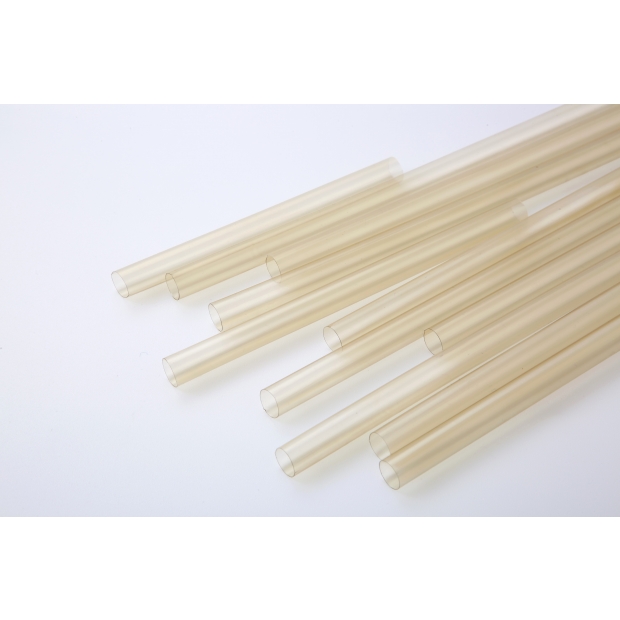

It commonly used in medical endoscopic systems or industrial borescope inspection devices. Its main purposes include:
Instrument passage channel: Allows medical instruments (such as biopsy forceps, electrosurgical tools, injection needles, etc.) to pass through the tube and enter the body for diagnostic or therapeutic procedures.
Highly flexible metal structure: The spiral metal design provides excellent flexibility and pushability, ensuring smooth operation even in curved paths.
Durable and dimensionally stable: Designed for repeated use, maintaining a stable inner diameter to ensure instruments can pass through without obstruction.
Commonly used in flexible endoscopes (such as gastroscopes, colonoscopes): Acts as a critical component for therapeutic intervention.

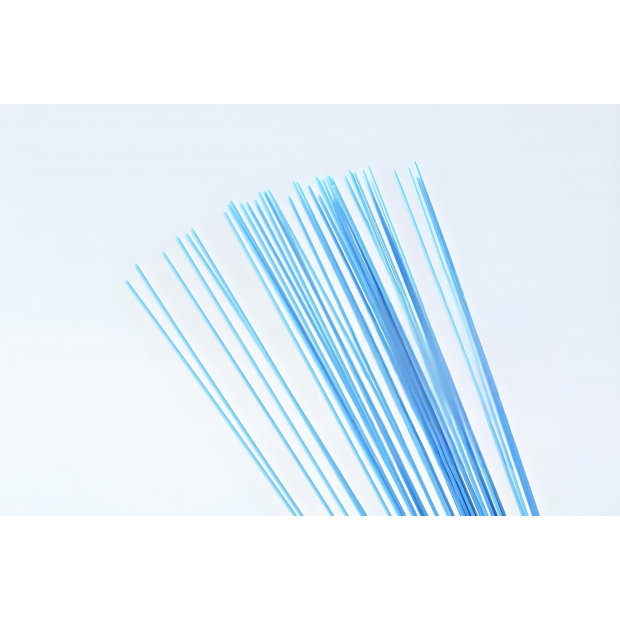

Product advantages:
Low friction coefficient
Excellent chemical resistance
Strong flexibility, high tensile strength
Withstand temperatures up to 260°C
Parameters:
PTFE extrusion WT0.02mm
PTFE dip coating WT0.005mm
Applicable to:
Cardiovascular intervention | endoscopy | neurosurgery

Ventilator Tubing: Connects patients to respiratory systems to deliver oxygen or air.
Suction or Drainage Tubes: Used for removing fluids during surgery or inpatient care.
Anesthesia Equipment: Transfers anesthetic gases to patients.

Product advantages:
Thermal stability
Shock resistance
Excellent strength
Long-term temperature resistance 280°C, short-term temperature resistance 340°C
The braided reinforcement can enhance the pressure resistance and push ability of the pipe
Parameters:
Precision machining, wall thickness as low as 0.005mm
Applicable to:
Cardiovascular intervention | urology | electrophysiology

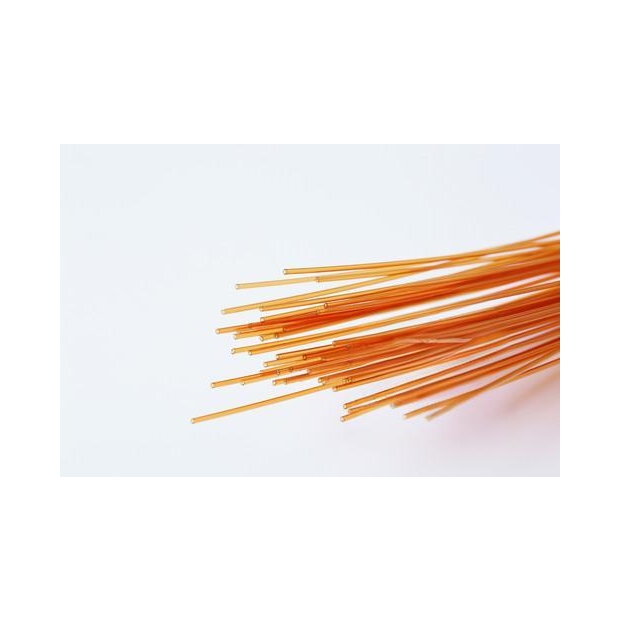

Product advantages:
Both hardness and toughness
Excellent chemical resistance and wear resistance
High crystallinity, better thermal stability
Long-term temperature resistance above 260°C, short-term temperature resistance of 320°C
Parameters:
The processing range is 0.2-15mm
Precision machining capacity WT: 0.02±0.005
Applicable to:
High temperature special field | artificial intelligence | surgical robot

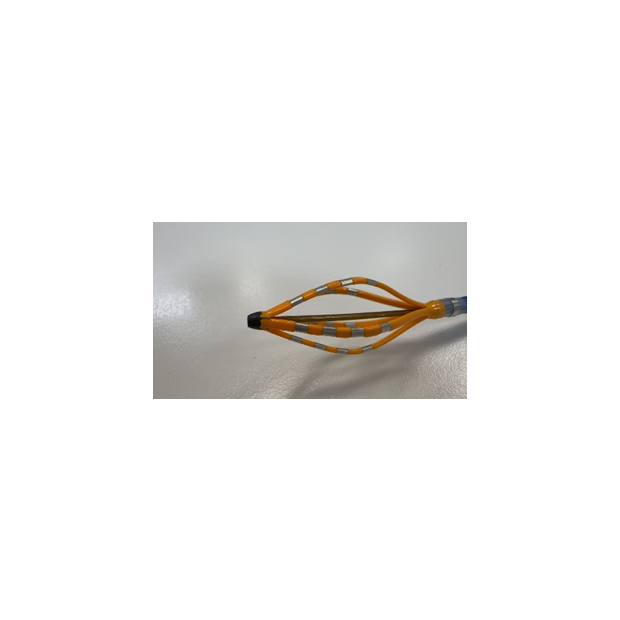

Adaptive instruments: lithotomy basket, electronic soft mirror channel, wire guide tube cavity, interventional sheath tube, puncture tool, etc.

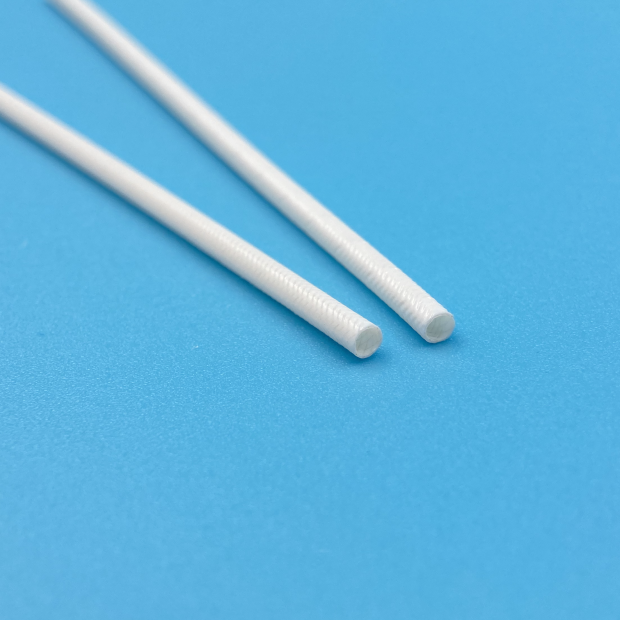

Advantage features:
PEEK (polyether ether ketone) plastic raw materials are aromatic crystalline thermoplastic polymer materials, with high mechanical strength, high temperature resistance, impact resistance, flame retardant, acid and alkali resistance, hydrolysis resistance, wear resistance, fatigue resistance, radiation resistance and good electrical properties.
Cavity structure:
Three layer structure of pipe body
• The inner layer is made of polymer material.
• The middle layer is PEEK woven wire to strengthen the mesh layer.
• The outer layer is polymer material.
Services can be customized according to customer requirements.

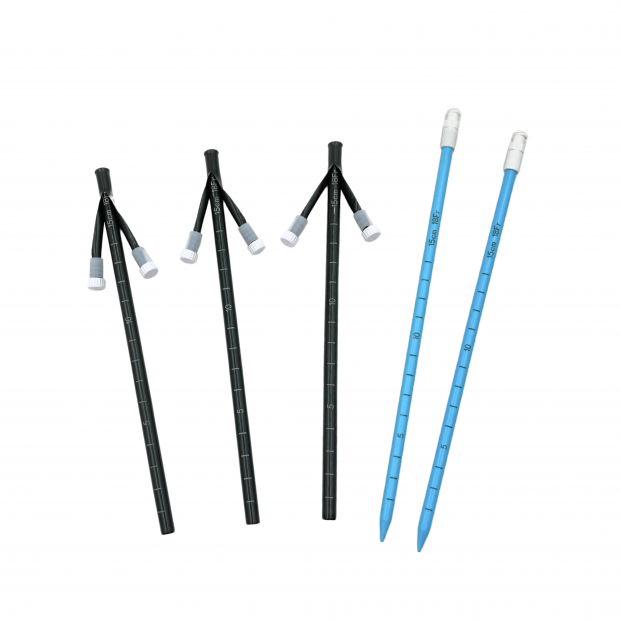

Advantage features:
Homemade PTFE material (low cost)
Tear easily
The tip of the canal is too round, and the puncture process will not damage the tissue
